How to build and Structuring in Node.js MVC Architecture Pattern
The article we’ll building and structuring application in Node.js using architectural pattern Model-View-Controller (MVC)
Project prerequisites
To follow this article, you will need the following:
- Node.js
- A MongoDB Atlas account to create our app’s database
- using npm with Node.js
- A text editor, such as Visual Studio Code

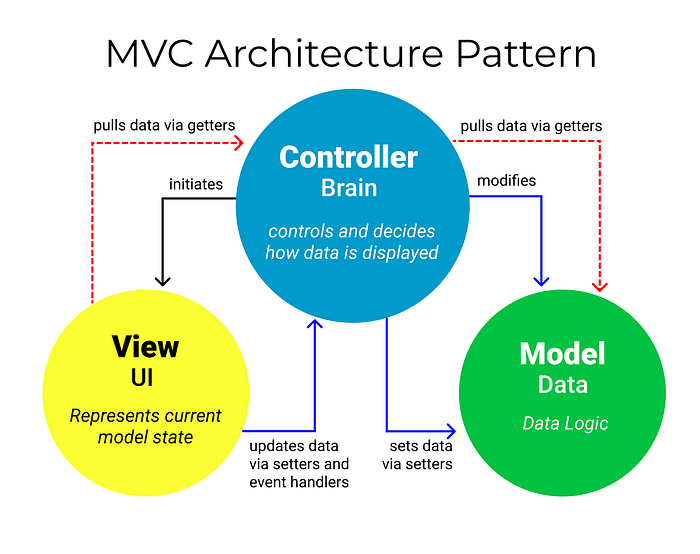

What is Model-View-Controller?
MVC is simply a design or architectural pattern used in software engineering. While this isn’t a hard rule, but this pattern helps developers focus on a particular aspect of their application, one step at a time.
The main goal of MVC is to split large applications into specific sections that have their own individual purpose.
It also allows developers to logically structure applications in a secure way, which we will show in this tutorial. But first, let’s break down what each aspect of the pattern provides.
Model
As the name implies, a model is a design or structure. In the case of MVC, the model determines how a database is structured, defining a section of the application that interacts with the database. This is where we will define the properties of a user that will be store in our database.
The controller accesses the database through the model. You could say that the model is the heart of the application.
View
The view is where end users interact within the application. Simply put, this is where all the HTML template files go.
Controller
The controller interacts with the model and serves the response and functionality to the view. When an end user makes a request, it’s sent to the controller which interacts with the database.
You can think of the controller as a waiter in a restaurant that handles customers’ orders, which in this case is the view. The waiter then goes to the kitchen, which is the model/database, and gets food to serve the customers, which is the controller handling the request.
Now, let’s build an application using the MVC pattern!
Setting up the application
To understand how to use MVC, we will build a simple login and registration system with a dashboard that shows users’ information. However, this article is more about structuring than about the application we are building.
So, open up your terminal in an empty folder and run the following command:

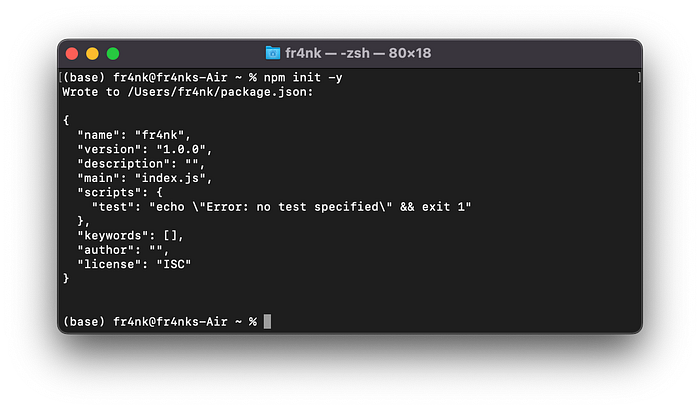

npm init -yThis creates a package.json file.
Now for this project, we will need to install some packages to get started:

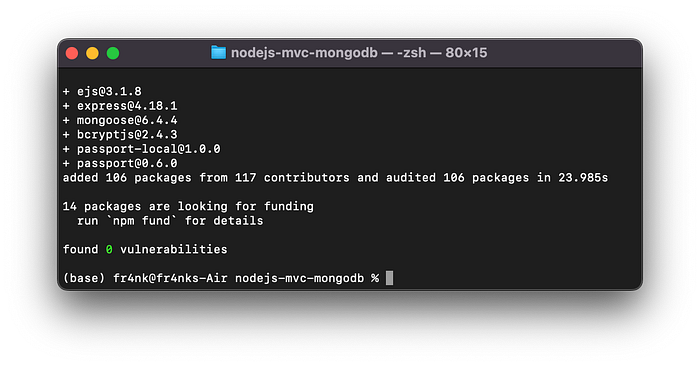

npm install express ejs mongoose bcryptjs passport passport-localThese packages provide is with the following:
expressis an Express application, which is necessary for our Express serverejsis a templating engine that generates HTMLmongooseis a package that connects our application to our MongoDBbycrptjshandles encrypting passwordspassportandpassport-localhandle authentication
After this is complete, you should see a node_module folder (this is where all the packages are downloaded to)

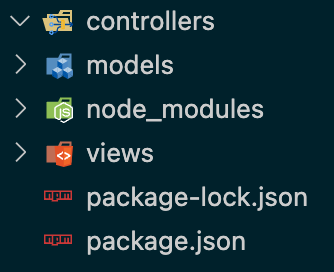

Now create three folders to represent MVC: models, views, and controllers.
Setting up the server
While we’ve created our folders, they can’t do anything without a server. To create our server, let’s create an index.js folder in our root directory. We can call this file whatever we want, provided we state so in the package.json file.
After creating the index.js file, go to the package.json file and edit the scripts like so:
Notice how main points to index.js and scripts has develop pointing to index.js. This means that whenever we run npm start from the command in the root of the application, it will run the entry point, which, in our case is the index.js file.
Now, let go of the index.js file to create our Express server. Copy and paste the following code into it:
//js
const express = require('express');
const app = express();
const PORT = process.env.PORT || 3000;
app.listen(PORT, console.log("Server don start for port: " + PORT))Remember that we already installed Express. Now, we are simply requiring it and assigning the express() function to app</code.
In line 5, we are now using the listen() method to start up a server that runs at http://localhost:3000. To confirm that our server is now up and running, run the following:

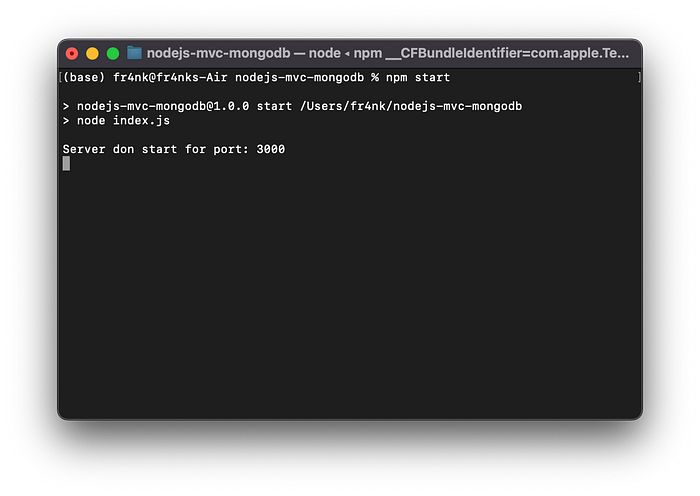

npm start
It then renders our confirmation that the server is running at port 3000.
Creating routes, views, and controllers
With our server up and running, let’s create some .ejs files in our view folder. Since we are following the MVC pattern, we need all our views, that is, what the end users see, to be in one folder.

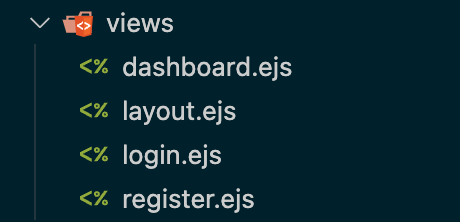

Inside the views folder, create the following files: login.ejs, register.ejs, dashboard.ejs, layout.ejs.
The layout.ejs code is included across the .ejs files in the view folder:
The login.ejs code is included across the .ejs files in the view folder:
code renders our Login page, as seen below:
The register.ejs code is included across the .ejs files in the view folder:

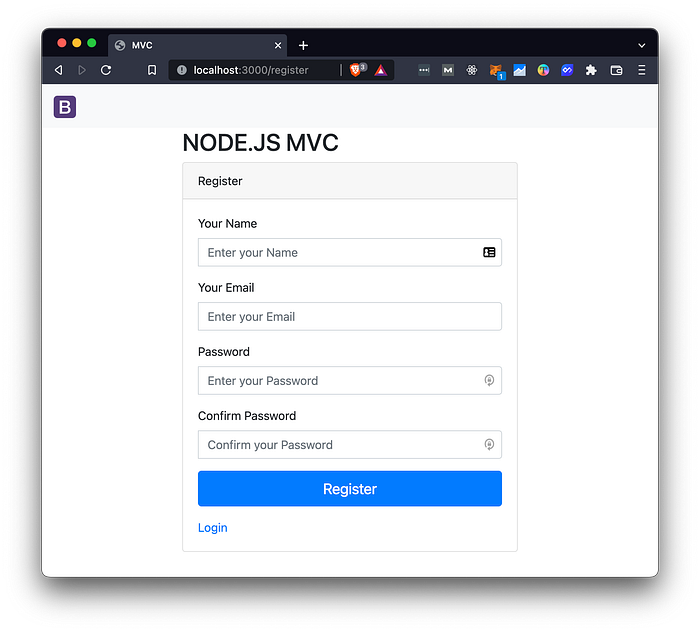

code renders our Register page, as seen below:
The dashborad.ejs code is included across the .ejs files in the view folder:

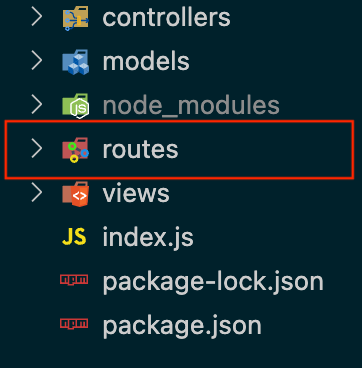

Next, create a folder called routes this is technically part of the controller
Here is the loginController.js file in the controller folder:
Here, registerView and loginView render the register.ejs and login.ejs view, respectively. Both are exported.
What we are doing here is using the Express router with registerView and loginView, which are exported from loginController under controllers.
The above two code blocks will not render the Login and Register pages without updating the index.js file to the following:
Notice that we have set the view engine to use .ejs and defined the root route to use what’s in login under routes.
Setting up MongoDB Atlas

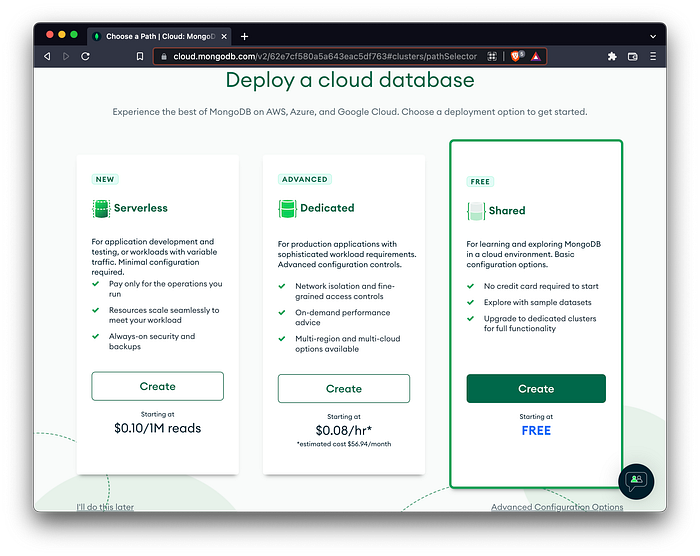

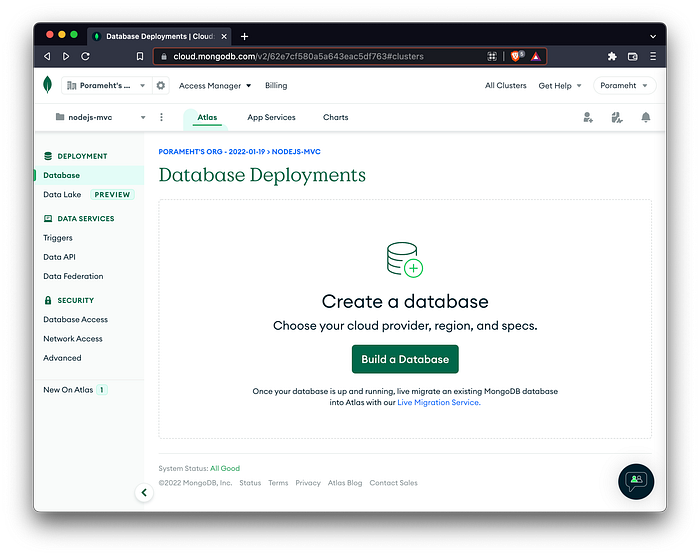

Now, you should have your Atlas MongoDB account ready. Go to Atlas and create a new project and a cluster.
which we can ignore and leave everything in the default settings. Then, click Create Cluster.

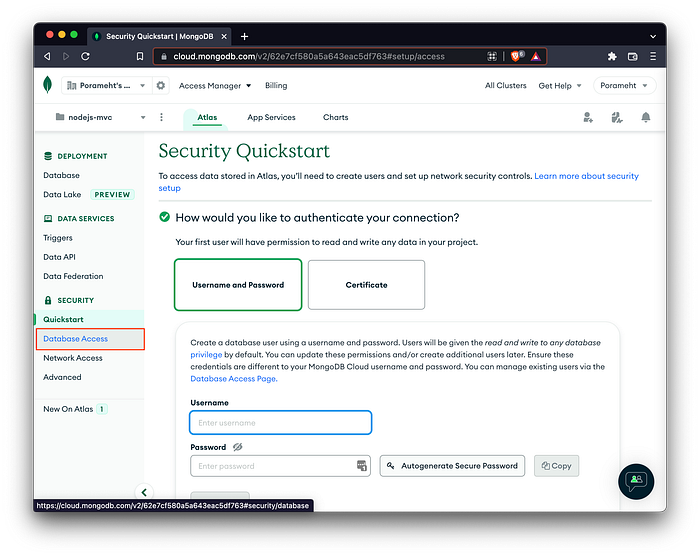

On the Security tab, select Database Access and create a user by deciding a username and password. Next, allow users to read and write the database.

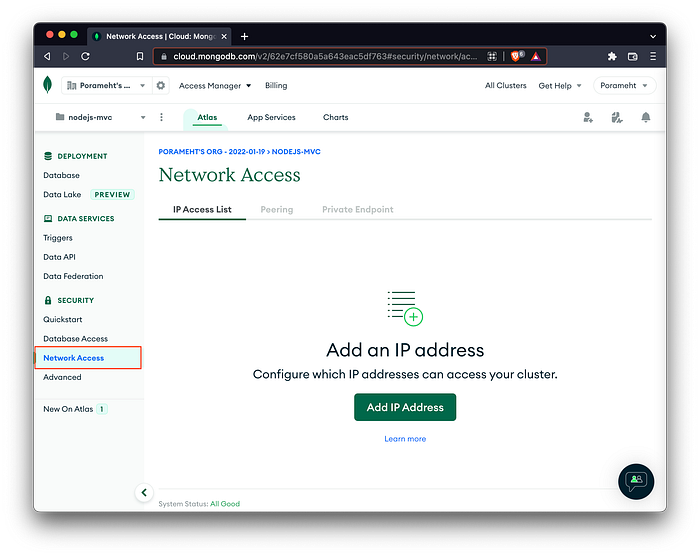

Again, on the Security tab, select Network Access, add the IP address, select ALLOW ACCESS FROM ANYWHERE, and confirm it (this will take about 3 minutes to be active).

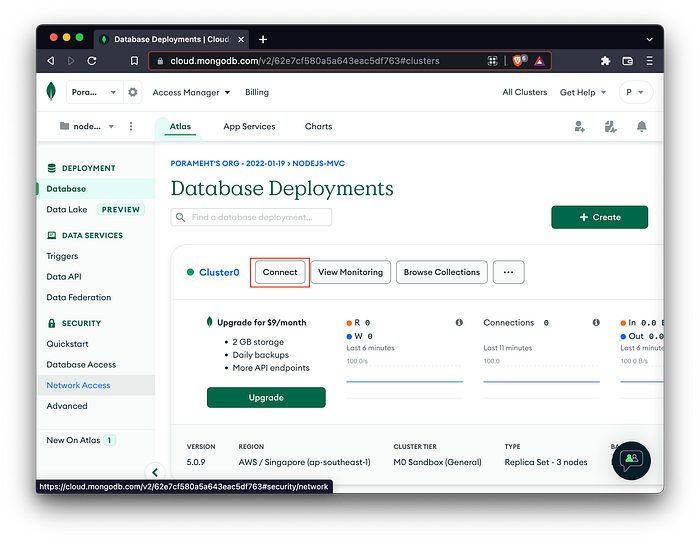

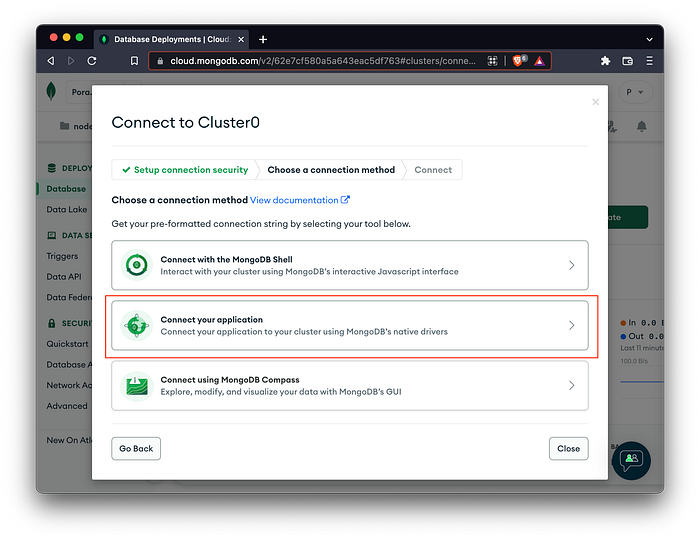

Now, go back to the clusters, click Connect, and select Connect your application

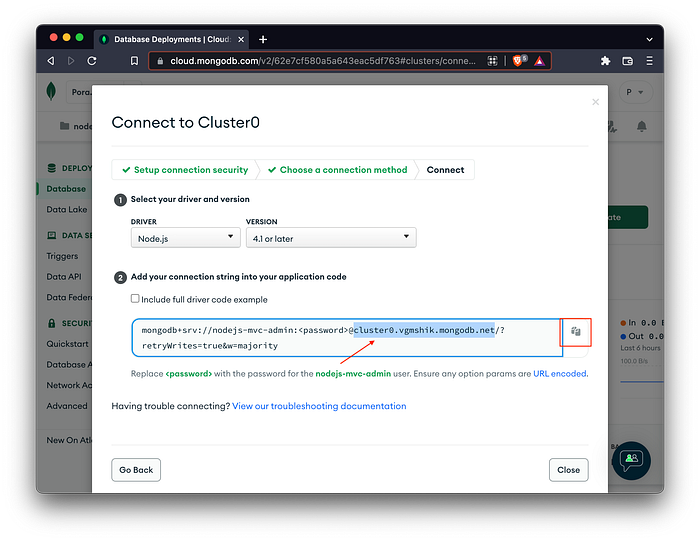

The highlighted part in the screenshot below is where your host will be. Note that yours will be different than mine.
Copy the host and head back to the project.
Connecting to the database
To connect to our database, we must store the credential we copied somewhere and ensure it’s safe. So, it is best practice to put sensitive credentials in an .env file.
install .dotenv and create the .env file in root directory:
npm install dotenvInside the .env file, add the following:
DB_URI= "Your credential goes here"This .env file should not be uploaded to your production or even committed to git; you must include it in your .gitignore file. The .env file stores virtual environments that must be rebuilt on the server using our configuration.
Now, let’s go to our index.js entry point to import Mongoose and connect it to our database. Remember that we installed dotenv, and we must import and use it along with Mongoose.
Now our index.js becomes the following:
By importing mongoose and dotenv they immediately call the config method to enable our connection to read the environment variables and assign their contents to process.env
We also created a database variable and assigned it to process.env.DB_URI that receivers it’s value from what we defined in .env file Lines 10 to 17 then connect to the database using the Mongoose method mongoose.connect().

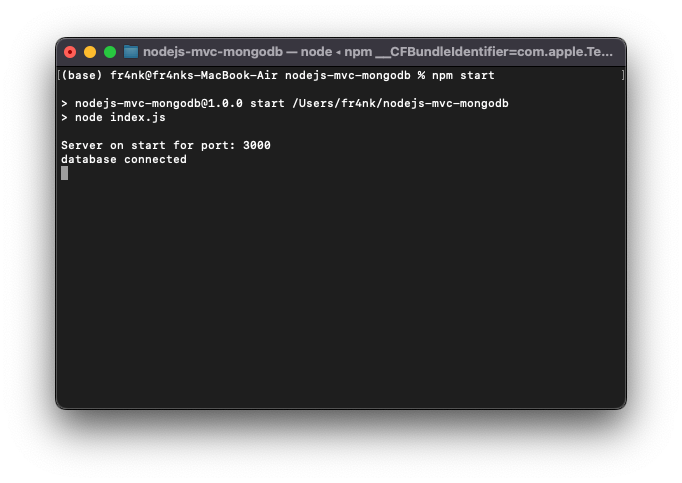

Stop the server from your terminal and run npm start again. You should get this response that lets us know we did everything correctly.
Our application is now connected to our MongoDB database.
Creating a model for user registration

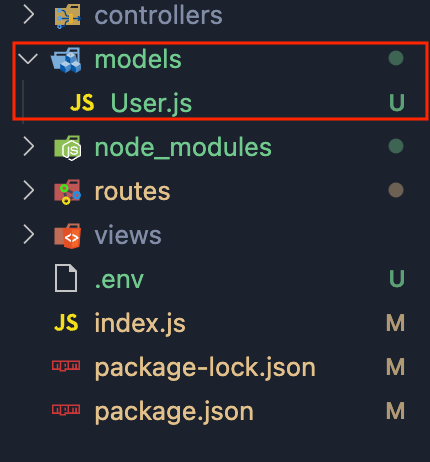

Models are what communicate directly to our database. So in our model folder, let’s create a User.js file
and input the following code:
These are the fields we want to insert into the database whenever a new user registers through the Registration page. We can store a name, password, email address, give users a default location of Bangkok, and include a timestamp when the registration completes.
Registering users
We have created a schema to store our user information in our database inside the User.js folder within the model folder. To see how this works, let’s make a POST request on the Registration page.
Whenever an end user hits the Register button, a POST request is sent to the /register route (remember what we did before was a GET request). To make this work, we must go to loginController.js and require the User.js model bycrypt because we must hash the password:
const User = require("../models/User");
const bcrypt = require("bcryptjs");Next, create a function that handles the POST request to the /register route. Here, the registerUser function uses data submitted through the form at the Registration page:
In line 11, we get all the inputs submitted into the form by users:
const { name, email, location, password, confirm } = req.body;req.body is an Express API that holds the submitted parameters through the frontend of our application. From lines 12 to 14, we check to see if any of the fields are empty; if any are empty, it logs, "Fill empty fields".
Lines 17 to 18, check to see if the password fields match; if they do not match, it logs "Password must match".
Lines 19 through 29 are an else if statement that only happens if the first two conditions are false. What it does is check to make sure that multiple users do not register with the same email address.
By checking the database, if a user exists with the same email address, it will console log "email exists" and renders the Registration page maintaining the user’s inputs.
Add a built-in Express middleware that parses incoming requests by adding the following to the index.js file:
//js//BodyParsing
app.use(express.urlencoded({extended: false}));
This built-in express middleware gives us the ability to process posted data and store it in the req.body.
Before we save the user’s information and hashed the password, we must also check the database to ensure there will never be multiple email addresses so every user’s email is unique.
Finally, we can export the registerUser module and import it into our login.js file.

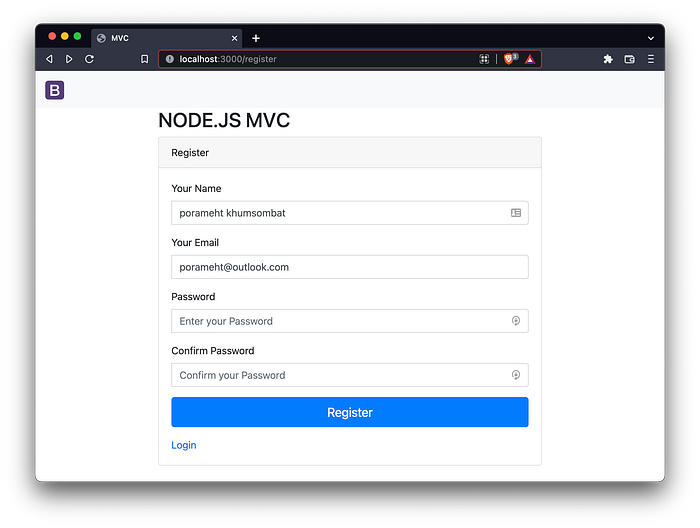

Whenever a user selects the Register button, if everything checks out, the form creates a user instance in the database and redirects them to the Login page.
Logging in and authenticating users
We have made the user registration process work. Now let’s work on the login section of our application.
To ensure our Login page works, we must authenticate users using Passport. If there is a user in the database, Passport redirects us to a dashboard that displays the user’s details.

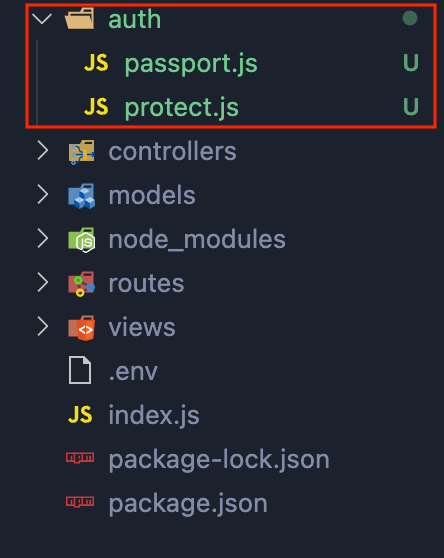

For better organization, let’s create a folder that will handle authentication. In our root folder create an auth folder, and add passport.js protect.js
In the passport.js file, input the following code:
Within lines 2 to 6, we imported bcryptjs, passport-local, and our User.js model file. bcryptjs compares the plain text entered into the login form with the encrypted data in the database.
Lines 8 through 45 contain the loginCheck function that has the passport parameter.
Inside the function, we used the LocalStrategy to check the database to see if there is an existing email already; if there is none, it consoles "wrong email".
bcrypt.compare() then compares the entered password with the one previously encrypted in the database.
With the introduction of passport.serializeUser and passport.deserializeUser to configure authentication, if the previous conditions in the code are false, Passport will serialize and deserialize the user.
Once confirming the user, Passport creates a session that the user’s browser maintains for subsequent requests.
Finally, we export the loginCheck. This is what handles our authentication, but we will need to add some middleware to our index.js file to initialize it.
In lines 7 to 9, the middleware requires the passport package andloginCheck from the ./auth/passport.js
In lines 28 and 29, we used the middleware provided by Passport in our Express app instance to initialize Passport and maintain a consistent session.
Finally, we must create a route for POST requests to /login. In our a loginController.js inside the controller folder, right above the export objects, input the following code:
With this, we declare a loginUser function. Inside this function, we look for the email and password entered into our Login page and check to see if the password or the email field is empty.
If either are empty, we console "Please fill in all the fields" and re-render the Login page.
Now, if that does not happen, and the email and password are correct, we then log the user in and redirect to /dashboard, however, we have not created this route yet.
The finalized loginController.js is as follows:
Dashboard sessions and logging out
With a user authenticated and every login detail is correct, let’s look into the dashboard route that will display the user’s name and location. We must protect this route from unauthorized users. In our auth folder inside the protect.js file, input the following code:
The protectRoute function redirects the user to the Login page if they try to access the dashboard without being authenticated first by logging in through the Login page.
With the function exported, let’s first add some code to the dashboard.ejs to define the routes we want to protect.
In dashboard.ejs under views, add the following code:
This is simply using the layout.ejs, providing some dynamic user information displayed using .ejs templating and a button for logging out.
For orderliness, create another controller file. So, in the controllers folder, create the dashboardController.js file and add the following code:
Here, we render the dashboard.ejs as the view here and accessing the req.user, which is available once there is an active session established by expressjs . With that, we have successfully logged into the dashboard.
Here, we render the dashboard.ejs as the view here and accessing the req.user, which is available once there is an active session established by expressjs . With that, we have successfully logged into the dashboard.
Then, in our login.js folder under routes, require the protectRoute that we exported from protect.js under auth:
const { protectRoute } = require("../auth/protect");Next, require the dashboardController.js under controllers:
const { dashboardView } = require("../controllers/dashboardController");Finally, add the protected dashboard route to return the dashboard.ejs through the dashboardView:
router.get("/dashboard", protectRoute, dashboardView);Our login.js under routes should look like this:
A final Express middleware is needed to initialize a session. In this instance, we can use express-session. To install, run:
npm i express-sessionAfter this installs successfully, require it in the index.js file after our express app instance:
const session = require('express-session');Then, add this before initializing your Passport instance. the finalized index.js is as follows:
This creates a session. And note, according to the Express docs, “Session data is not saved in the cookie itself, just the session ID. Session data is stored server-side”.

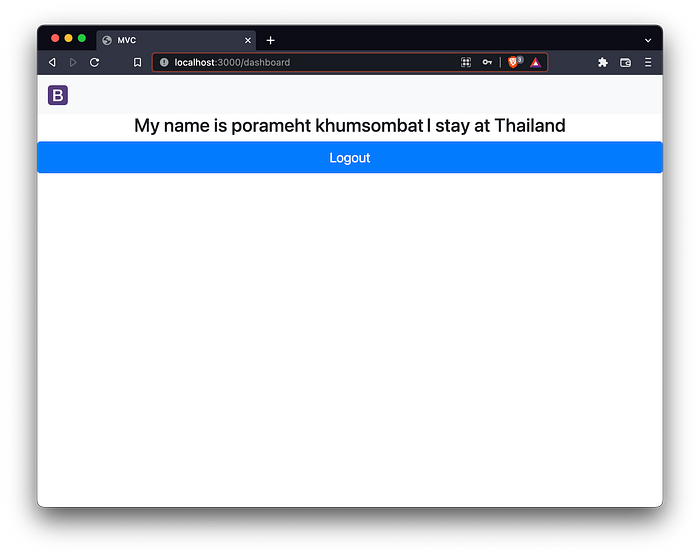

Now, when we log in with the correct email and password, we should see this:
Conclusion
You have seen this through. I hope you enjoyed and learned a lot about how to structure and build your next application using the MVC architectural pattern.
We were able to elucidate on what model, view, and controller mean and followed this pattern to build and structure a user registration and login system using Express.js and Passport for authentication. You also saw how we put all these together with a MongoDB database.
